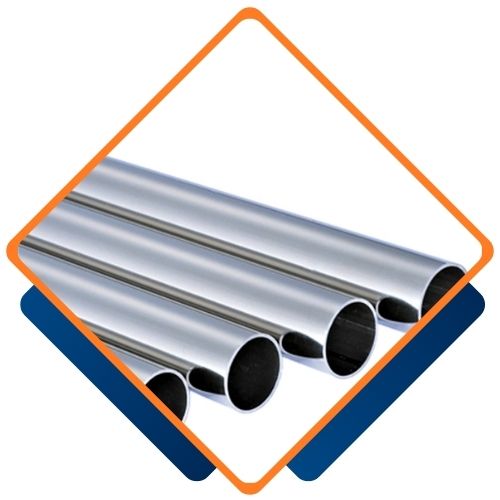

Home > Stainless Steel >Stainless Steel 347 and 347H EFW Pipes
Tun Pipes, located in Naypyidaw, Myanmar, stands out as a top manufacturer and supplier of premium stainless steel products, with a focus on seamless tubing. They pride themselves on precision, durability, and keeping their customers happy, catering to a variety of industries that need dependable and corrosion-resistant piping solutions. One of their standout products is the Stainless Steel 321/321H seamless tubing, which is renowned for its outstanding performance in high-temperature and challenging environments. By utilizing cutting-edge manufacturing techniques and rigorous quality control, Tun Pipes guarantees that every tube meets international standards, making it the go-to choice for industrial, chemical, and engineering applications throughout Myanmar and Southeast Asia.
The Stainless Steel 321/321H seamless tubing is an austenitic chromium-nickel alloy that’s stabilized with titanium, which boosts its resistance to intergranular corrosion. It typically contains 17–19% chromium, 9–12% nickel, and titanium to enhance its stability at high temperatures. This tubing boasts impressive mechanical properties, with tensile strength ranging from 515–750 MPa and yield strength between 205–275 MPa, depending on the grade and heat treatment. It also has an elongation of 40% or more, providing flexibility without sacrificing strength. The 321H variant, with its higher carbon content, offers better creep resistance, making both grades perfect for extreme temperature and pressure situations.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. | EN | JIS | GOST |
| SS 347 | S34700 | 1.4550 | X6CrNiNb18-10 | SUS 347 | 08Ch18N12B |
| SS 347H | S34709 | 1.4961 | X6CrNiNb18-12 | SUS 347H | – |
| Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
| SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 20.00 | 10xC – 1.10 | 9.00 – 13.00 | 62.74 min |
| SS 347H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 8xC – 1.10 | 9.0 -13.0 | 63.72 min |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | |||
| Psi – 75000, MPa – 515 | Psi – 30000, MPa – 205 | 35 % | 92 | 201 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 347 and 347H EFW Pipes from Tun Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
We offer custom sizes for Stainless Steel 347 and 347H EFW Pipes to meet your specific needs. Our dedicated team at Tun Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@tunpipes.com.
You’ll find Stainless Steel 321/321H seamless tubing in settings that demand high corrosion resistance and thermal stability. It’s commonly used in chemical processing, petrochemical plants, and power generation systems, where the tubes are exposed to high-temperature fluids and gases. Its exceptional strength and oxidation resistance make it ideal for exhaust systems, heat exchangers, and furnace components. Plus, it’s also utilized in the aerospace, food processing, and pharmaceutical industries for its hygienic and durable properties.
