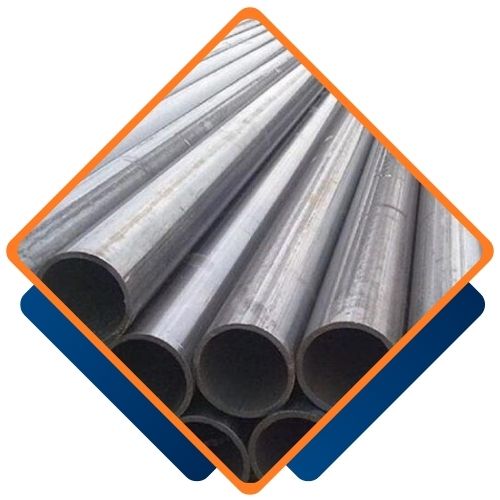

Home > Stainless Steel >Stainless Steel 316H EFW Pipes
Tun Pipes is a reliable manufacturer and supplier located in Naypyidaw, Myanmar, with a focus on high-quality Stainless Steel 316Ti EFW Pipes. Renowned for their precision engineering and commitment to international standards, the company delivers products that excel in demanding industrial settings. With an emphasis on durability, corrosion resistance, and long-lasting performance, Tun Pipes caters to clients across various sectors, including chemical processing, petrochemical, power generation, marine, and construction. Their Stainless Steel 316Ti EFW Pipes are crafted using cutting-edge fabrication techniques, guaranteeing exceptional strength, consistency, and reliable performance for a wide range of industrial applications.
These Stainless Steel 316Ti EFW Pipes are made from an alloy that includes about 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, with titanium added to prevent sensitization and enhance stability at high temperatures. This unique composition helps resist carbide precipitation and boosts corrosion resistance. The material boasts high tensile strength, excellent creep resistance, and impressive toughness, even in tough conditions. These mechanical properties make 316Ti EFW pipes perfect for environments that involve acids, chlorides, and high temperatures, where structural integrity is essential.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. |
| SS 316H | S31609 | 1.4401 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Grade | Tensile Strength | Yield Strength | Elongation |
| SS 316H | Psi – 75000, MPa – 515 | Psi – 30000, MPa – 205 | 35 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 316H EFW Pipes from Tun Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
| Grade | Density (kg/m3) | Mean Co-eff of Thermal Expansion (µm/m/°C) | Thermal Conductivity (W/m.K) | Elastic Modulus (GPa) | Specific Heat 0-100°C (J/kg.K) | Elec Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | At 100°C | At 500°C | |||||
| 316H | 8000 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 193 | 500 | 740 |
We offer custom sizes for Stainless Steel 316H EFW Pipes to meet your specific needs. Our dedicated team at Tun Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@tunpipes.com.
Stainless Steel 316Ti EFW Pipes are extensively utilized in industries that demand outstanding corrosion resistance and high-temperature stability. They are frequently found in chemical and petrochemical plants for transporting corrosive fluids and gases. Marine and offshore applications depend on them for their durability against salty conditions. Additionally, they are used in power generation, heat exchangers, pharmaceutical processing, food and beverage equipment, and architectural projects. Thanks to their excellent weldability and longevity, 316Ti EFW pipes are the go-to choice for high-pressure pipelines, boiler systems, and industrial processing units that require robust, contamination-resistant materials.
