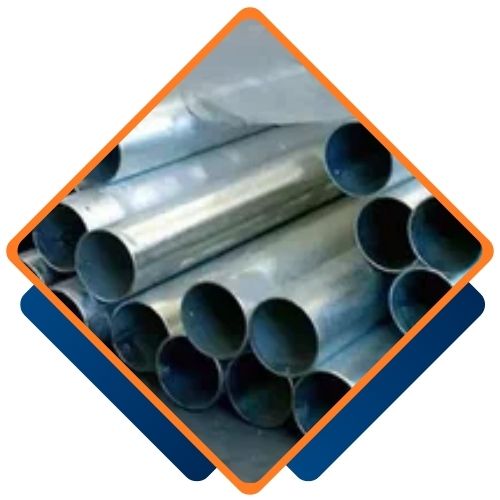

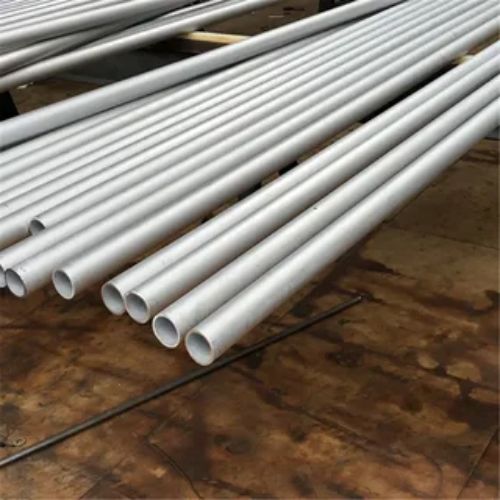

Tun Pipes, located in Naypyidaw, Myanmar, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Titanium Grade 2 Tubing. With a focus on precision manufacturing and rigorous quality control, this company produces tubing that not only meets industrial standards but also ensures dependable performance across a wide range of applications. Tun Pipes caters to various sectors, including chemical processing, marine, desalination, and medical equipment. Titanium Grade 2 Tubing is particularly prized for its remarkable corrosion resistance, lightweight design, and ductility, making it the go-to choice for engineers and designers who need durable, long-lasting tubing in demanding environments.
Titanium Grade 2 Tubing is made from commercially pure titanium, typically containing 99% titanium along with small amounts of iron, oxygen, and carbon. It boasts a tensile strength of about 344 MPa, a yield strength of around 275 MPa, and an elongation of 20–30%, which translates to excellent ductility and formability. This alloy is known for its exceptional corrosion resistance in both oxidizing and reducing environments, including seawater, chlorides, and acidic conditions. Its low density combined with a high strength-to-weight ratio makes it ideal for applications that require lightweight yet robust tubing that can perform well even in harsh conditions.
Specification : ASTM B861, B338, B388, B862 / ASME SB861, SB338, SB388, SB862
Pipe Range : ½”NB to 24”NB / SCH 10 – SCH XXS
Tubes Range: 1mm OD to 254mm OD / Thickness 0.1 to 20mm.
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Inspection, Test Reports : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports
Packing : Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials : Sizes and Specifications other than above can be manufactured on request
| C | Fe | H | N | O | Ti |
|---|---|---|---|---|---|
| max | max | max | max | max | max |
| 0.1 | 0.3 | 0.015 | 0.03 | 0.25 | 99.2 |
| Hardness, Knoop | 170 | 170 | |
|---|---|---|---|
| Hardness, Rockwell B | 80 | 80 | |
| Hardness, Vickers | 145 | 145 | |
| Tensile Strength, Ultimate | 344 MPa | 49900 psi | |
| Tensile Strength, Yield | 275 – 410 MPa | 39900 – 59500 psi | |
| Elongation at Break | 20 % | 20 % | |
| Reduction of Area | 35 % | 35 % | |
| Modulus of Elasticity | 105 GPa | 15200 ksi | In Tension |
| Compressive Modulus | 110 GPa | 16000 ksi | |
| Poisson’s Ratio | 0.37 | 0.37 | |
| Izod Impact | 114 – 171 J | 84.1 – 126 ft-lb | |
| Fatigue Strength | 300 MPa | 43500 psi | 1E+7 cycles, Unnotched |
| Fatigue Strength | 425 MPa | 61600 psi | 30,000 cycles, Unnotched |
| Fracture Toughness | 66 MPa-m½ | 60.1 ksi-in½ | K(Q); annealed |
| Shear Modulus | 45 GPa | 6530 ksi |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
By choosing Titanium Gr 2 Tubing from Tun Pipes and Tubes, you are assured of superior quality and durability. These tubes provide outstanding corrosion resistance and strength, making them ideal for a wide range of industrial applications. Our dedication to excellent service and dependable delivery ensures customer satisfaction every time. With our expertise in stainless steel products, we deliver top-tier solutions customized to meet your specific requirements.
Tun Pipes and Tubes, a leading supplier of Titanium Gr 2 Tubing in Naypyidaw, Myanmar, provides a wide selection of premium pipes and tubes for diverse industrial applications. With a vast inventory and a strong focus on delivering outstanding service, they are the preferred choice for stainless steel products in the region.
At Tun Pipes and Tubes, we provide custom sizes of Titanium Gr 2 Tubing to meet your exact specifications. Our dedicated team is here to offer tailored solutions for all your piping and tubing needs. For more information, feel free to reach out to us at sales@brydonpipesandtubes.co.uk.
Titanium Grade 2 Tubing is extensively utilized in industries that require corrosion-resistant and lightweight solutions. In chemical and petrochemical plants, it’s commonly found in piping, heat exchangers, and reactors. The marine industry relies on it for seawater piping, desalination systems, and offshore structures due to its impressive resistance to saltwater corrosion. In the medical field, it’s used for surgical instruments and equipment. Moreover, it’s also employed in food processing, water treatment, and high-performance engineering applications where durability, reliability, and resistance to tough environments are crucial.
