SMO 254 Pipes

SMO 254 Pipes Manufacturer, Supplier and Exporter in Naypyidaw, Myanmar

Hailing from the heart of Naypyidaw, Tun Pipes has established itself as a trusted name for industrial solutions, specializing in the supply of high-performance alloys. We take particular pride in our range of SMO 254 pipes, materials chosen for their exceptional ability to stand up to some of the most challenging environments. We understand that reliability is paramount for your projects, which is why we commit to providing pipes that offer outstanding durability and long-term value for critical applications across various demanding sectors.

SMO 254 Pipes Exporter in Myanmar, SS UNS S31254 Pipes Supplier in Yangon, SMO 254 Pipe Manufacturer in West Naypyidaw, Alloy 254 Pipes Price List in Myanmar, ASTM A312 SMO 254 Pipe Distributor in Naypyidaw,SMO 254 1.4547 Pipes in Bago, ASTM A312 TPSMO 254 Pipe Exporters in Myanmar

The strength of SMO 254 lies in its sophisticated composition, primarily a high-chromium and nickel alloy fortified with substantial molybdenum and copper. This specific blend gives the pipes their signature resistance to pitting and crevice corrosion, especially in chloride-rich settings. Mechanically, they are robust, offering excellent tensile strength and good ductility, which makes fabrication and installation a more straightforward process. This combination of inherent toughness and superior corrosion resistance is what sets this material apart from conventional stainless steels.

SMO 254 Pipes Specification

Pipe Standard	ASTM A312 ASME SA312
Pipe Dimension	ANSI/ASME B36.19M, ANSI/ASME B36.10M
Pipe Sizes	1 / 2″ NB – 24″ NB
Pipe Outside Diameter	6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Steel Pipe Manufacturing Process	Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded
SMO 254 Pipe Shapes	Hydraulic, Round, Rectangle, Square, Hex, Honed
SMO 254 Pipe Schedule	SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Pipe Ends	Half Hard, Soft, Hard, Quarter Hard, Spring Hard
Delivery Condition	Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
Outside Finish	2B, No.4, No.1, No.8 Mirror Finish for SMO 254 Pipes, Finish as per customer Requirements
Value Added Services	Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing

SMO 254 Pipes Chemical Composition

Grade	Ni	Cr	Mo	Cu	N	C	Mn	Si	P	S
SMO 254	17.5 – 18.5	19.5 – 20.5	6 – 6.5	0.5 – 1	0.18 – 0.22	0.02 max	1 max	0.8 max	0.03 max	0.01 max

SMO 254 Pipes Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.0 g/cm3	1320-1390 ℃	650	300	35 %

Equivalent Grades of SMO 254 Pipes

STANDARD	WERKSTOFF NR.	UNS	SIS	AFNOR	EN
254 SMO	1.4547	S31254	2378	Z1 CNDU 20.18.06Az	X1CrNiMoCuN20-18-7

SMO 254 Pipes Thermal Properties

Temperature, oC	W/m oC	Temperature, oF	Btu/ft h oF
20	10	68	6
100	12	200	7
200	14	400	8
300	16	600	9.5
400	18	800	10.5
500	20	1000	11.5
600	21	1200	12.5
700	23	1300	13

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

ASME SA 312 TPSMO 254 Pipes Naypyidaw,SMO 254 Pipes Exporters in Myanmar, SMO 254 Pipe Manufacturers in West Naypyidaw, SS UNS S31254 Pipes Supplier in Naypyidaw, SS SMO 254 Schedule 20 Pipe Stockist in in Bago, Stainless Steel SMO 254 Pipes Distributor in Myanmar, SMO 254 Pipes in Bursa

Why Choose SMO 254 Pipes from Tun Pipes and Tubes?

Choosing SMO 254 Pipe from Tun Pipes and Tubes assures exceptional quality and durability to suit demanding applications. Our pipes exhibit outstanding corrosion resistance and strength, providing long-lasting performance. With our focus on precision manufacturing, we efficiently meet technical needs. Our team of experts provide personalized support and timely deliveries, enhancing your experience. We put customer satisfaction first and strive to build lasting partnerships. Trust Tun Pipes and Tubes for the reliable, high-performance piping solutions you need.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest SMO 254 Pipes Supplier in Naypyidaw, Myanmar

Tun Pipes and Tubes, one of the largest suppliers of SMO 254 Pipes in Naypyidaw, Myanmar, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.

SMO 254 Pipes Sizes in MM

Designation of Diameter		O/D	Nominal Wall Thickness
Designation of Diameter		DIA	SCH.5S		SCH.5		SCH 10S		SCH.10		SCH.20S		SCH.30		SCH.40S		SCH.40		SCH 60
(A)	(B)	Meter MM	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr
6	1/8	10.3	1	0.23			1.2	0.27			1.5	0.33			1.73	0.37
8	1/4	13.7	1.2	0.37			1.65	0.49			2	0.58			2.24	0.64
10	3/8	17.2	1.2	0.47			1.65	0.63			2	0.74			2.31	0.87
15	1/2	21.3	1.65	0.01	1.65	0.81	2.11	1.02	2.11	1.02	2.5	1.15			2.77	1.29
20	3/4	26.7	1.65	1.03	1.65	1.03	2.11	1.3	2.11	1.3	2.5	1.49			2.87	1.71
25	1	33.4	1.65	1.31	1.65	1.31	2.77	2.13	2.77	2.13	3	2.24			3.38	2.54
32	11/4	24.2	1.65	1.67	1.65	1.67	2.77	2.73	2.77	2.73	3	2.9			3.56	3.44
40	11/2	48.3	1.65	1.93	1.65	1.93	2.77	3.16	2.77	3.16	3	3.35			3.68	4.11
50	2	60.3	1.65	1.93	1.65	2.42	2.77	3.99	2.77	3.99	3.5	4.9			3.91	5.52
65	21/2	73	2.11	3.75	2.11	3.75	3.05	5.34	3.05	5.34	3.5	6			5.16	8.77
80	3	88.9	2.11	4.59	2.11	4.59	3.05	6.56	3.05	6.56	4	8.37			5.49	11.47
90	31/2	101.6	2.11	5.25	2.11	5.25	3.05	7.53	3.05	7.53	4	9.62			5.74	13.78
100	4	114.3	2.11	5.93	2.11	5.93	3.05	8.5	3.05	8.5	4.5	12.18			6.02	6.32
125	5	141.3	2.77	9.61	2.77	9.61	3.4	11.74	3.43	11.74	5	16.8			6.55	2210
150	6	168.3	2.77	11.47	2.77	11.47	3.4	14.04	3.43	14.04	5.5	22.08			7.11	28.69
200	8	219.1	2.77	15	2.77	15	3.76	20.77	3.76	20.27	6.35	33.82	7.04	37.38	8.18	43.2			10.81	53.9
250	10	273.1	3.4	22.95	3.4	22.95	4.19	28.2	4.19	28.2	6.35	42.41	7.8	51.81	9.27	61.22			12.2	82.8
300	12	323.9	3.96	31.72	4.19	33.6	4.57	36.54	4.57	36.54	6.35	50.48	8.38	66.2	9.53	75.01	10.31	80.94	14.27	110.62
350	14	355.6	3.96	34.86			4.78	41.99	6.35	55.53	7.92	68.95	9.53	82.58	9.53	82.58	11.13	96	15.06	128.42
400	16	406.4	4.19	42.2			4.78	48.07	6.35	63.61	7.92	79.03	9.53	94.7	9.53	94.7	12.7	125.2	16.66	162.59
450	18	457.2	4.19	47.46			4.78	54.15	6.35	71.69	7.92	89.1	11.13	124.32	9.53	106.83	14.27	158.27	19.05	209
500	2C	508	4.78	60.23			5.54	69.7	6.35	79.76	9.53	118.93	12.7	157.51	9.53	118.9	15.06	185.89	2062	251.65
550	22	558.8	4.78	65.95			5.54	76.75	6.35	87.84	9.53	131.07	12.7	173.66	9.53	131.07	15.88	216.04	22.23	298.55
600	24	609.6	5.54	83.8			6.35	95.92	6.35	95.92	9.53	143.2	14.27	212.72	9.53	143.2	17.45	258.74	24.59	360.21
650	26	660.4							7.92	129.4	12.7	205.97			9.53	155.32
700	28	711.2							7.92	139.47	12.7	222.13	15.88	276.48	9.53	167.44
750	3C	762	6.35	120.15			7.92	149.55	7.92	149.55	12.7	238.28	15.88	296.68	9.53	179.56
800	32	812.8							7.92	159.62	12.7	254.44	15.88	316.88	9.53	191.69	17.48	348.11
850	34	863.6							7.92	169.64	12.7	270.5	15.88	336.96	9.53	203.74	17.48	370.22
900	36	914.4							7.92	179.77	12.7	286.75	15.88	357.28	9.53	215.93	19.05	427.09

SS SMO 254 Schedule 40 Pipe Price List in Naypyidaw, S31254 Pipes Supplier in Yangon, SS SMO 254 Pipes Price Per Kg, ASTM A312 SMO 254 Pipe Exporter in West Naypyidaw, SMO 254 Pipes Stockist in Naypyidaw,1 inch SS Pipe Price List in Bago, SS SMO 254 Pipe Weight Chart, SS SMO 254 Schedule 20 Pipe Thickness, Austenitic SMO 254 Pipe Manufacturers in Myanmar

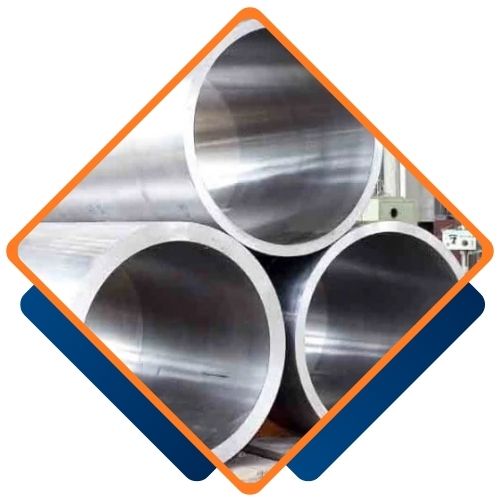

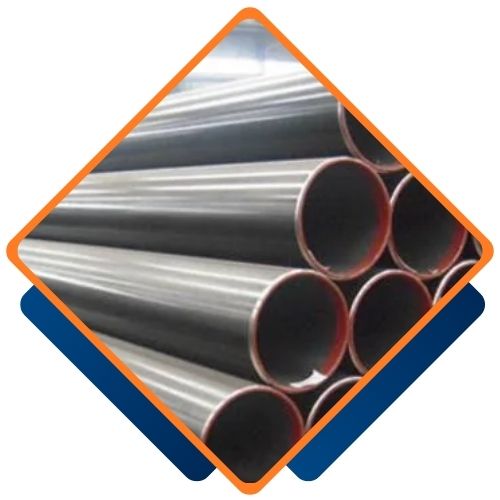

Types of SMO 254 Pipes

Are Custom Sizes Available for SMO 254 Pipes?

Yes, we offer custom sizes for SMO 254 Pipes to meet your specific requirements. Our team at Tun Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@tunpipes.com.

SS UNS S31254 Pipes Exporters in Bago, ASME SA 312 TPSMO 254 Pipes Bodrum , Alloy 254 Pipes Distributor in Yangon, SS SMO254 Pipes Price Per Kg, SMO 254 Pipe Supplier in Naypyidaw, SS SMO254 Pipe Stockist in Myanmar, SMO 254 Pipes Dealer in West Naypyidaw

SMO 254 Pipes find their place in various industries where top-tier corrosion resistance and strength are crucial. In the offshore oil and gas sector, they are utilized in piping systems, risers, and subsea equipment that face high chloride levels. The chemical and petrochemical industries depend on them for heat exchangers, reactors, and storage tanks. Desalination plants favor SMO 254 for high-pressure piping and evaporator tubing due to its seawater resistance. Additionally, it plays a vital role in marine engineering, pulp and paper production, and power generation sectors.
