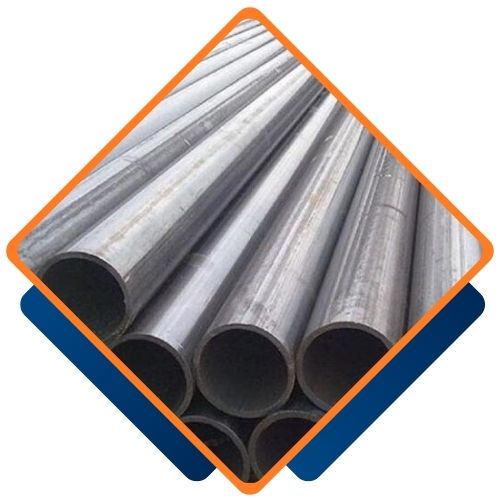

Strategically based in the capital, Naypyidaw, Tun Pipes is a trusted name in the industrial supply chain, recognized for delivering robust and reliable materials for Myanmar’s demanding sectors. We take pride in specializing in high-performance alloys, with our Monel K500 pipes standing as a testament to our commitment to quality. By understanding the unique challenges faced by local industries, we provide material solutions that not only meet but exceed expectations, ensuring the integrity and longevity of critical projects across the nation.
The strength of Monel K500 lies in its refined composition. It builds upon the excellent corrosion resistance of the Monel 400 alloy by adding aluminum and titanium, which allows it to be age-hardened. This special heat treatment process significantly boosts its mechanical properties, resulting in pipes that offer a remarkable combination of high strength, exceptional toughness, and impressive hardness. This means they can withstand substantial pressures and resist wear and galling far better than many standard alloys, even in challenging environments.
| Dimensions & Specifications | ASTM B 163 ASME SB 163 / ASTM B 165 ASME SB 165 |
|---|---|
| Sizes Available | 15 TO 150″ NB IN |

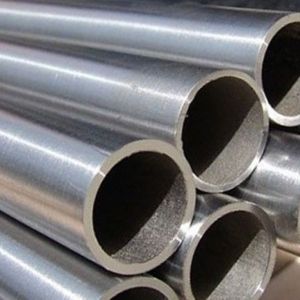

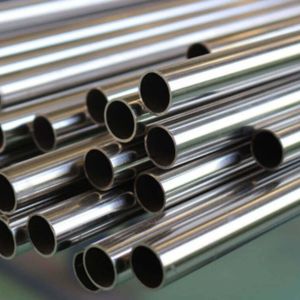

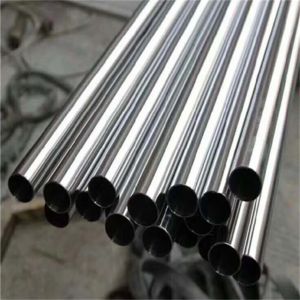

| Most famous types | Seamless / Welded / ERW / Fabricated |

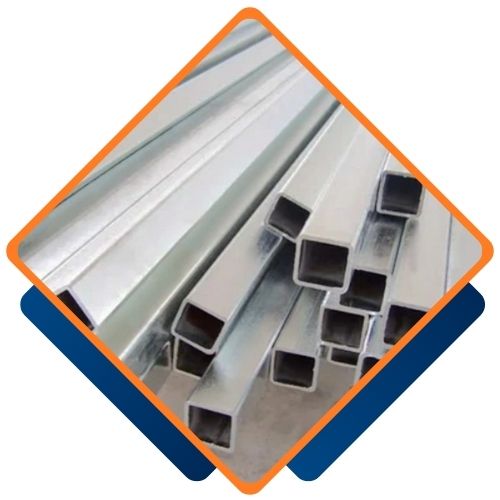

| Manufacturing Pipes Forms | Round, Hydraulic & square pipes |
| Pipe End Bevel | Plain End, BBE, POE, BE, BOE, TBE, BLE, PBE, BOE, TOE, BSE, Beveled End, Treaded |
| DIN Werkstoff nr. | 2.4375 |
| UNS designation | N05500 |
| Monel K500 | S | Ni | Fe | C | Si | Al | Mn | Cu |
| 0.02 max | 63.0 min | 1.0 – 2.5 | 0.3 max | 0.5 max | 0.50 max | 2.0 max | 28.0 – 34.0 |
| Density | Yield Properties (0.2%Offset) | Melting Point | Elongational | Tensile Properties |
| 8.8 g/cm3 | Psi – 35,000 , MPa – 240 | 1350 °C (2460 °F) | 40 % | Psi – 80,000 , MPa – 550 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Monel K500 Pipes from Tun Pipes and Tubes for their outstanding corrosion resistance, high strength, durability, and superior performance in extreme conditions. These characteristics make them ideal for demanding industrial applications.
Tun Pipes and Tubes, one of the largest suppliers of Monel K500 Pipes in Naypyidaw, Myanmar, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for monel products in the region.
| ASTM B165 Monel K500 Pipe OD mm | Pipe WT mm | in. | Sch | Kg/m |
|---|---|---|---|---|
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
Yes, we offer custom sizes for Monel K500 Pipes to meet your specific requirements. Our team at Tun Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@tunpipes.com.
Monel K500 Pipes find extensive use in marine engineering, chemical processing, desalination plants, and the oil and gas sector, thanks to their impressive strength and corrosion resistance. They are perfect for seawater piping systems, pump and valve components, heat exchangers, and underwater equipment. The aerospace and nuclear industries also take advantage of their superior mechanical properties and resistance to stress corrosion cracking. Furthermore, they are well-suited for chemical tanks, piping in acidic environments, and high-performance industrial applications.
