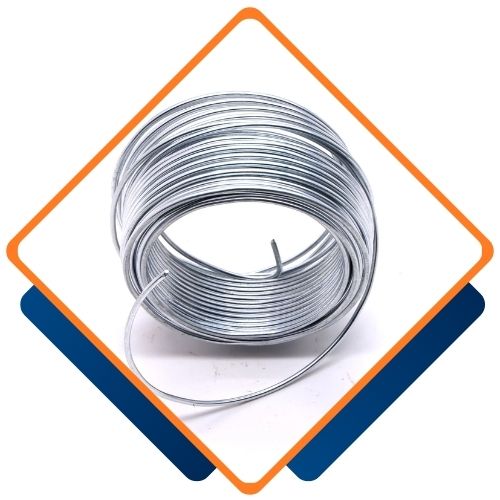

For over a decade, Tun Pipes has stood as a trusted name in Naypyidaw, dedicated to providing robust industrial solutions. We specialize in supplying high-performance Monel coil tubing, a material chosen for its exceptional resilience in the most demanding environments. Our commitment lies not just in delivering a product, but in offering a reliable component that integrates seamlessly into your critical operations, ensuring longevity and performance you can count on from a local partner you can trust.
The strength of Monel coil tubing comes from its unique composition, primarily a blend of nickel and copper, which gives it a natural edge against corrosion. This alloy is renowned for its excellent mechanical properties, including high tensile strength and good ductility, allowing it to be coiled without compromising its integrity. It maintains remarkable toughness across a wide range of temperatures, making it a durable and dependable choice where other materials might falter under stress or exposure.
| End | Plain End, Beveled End, Treaded |
|---|---|
| Monel Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| Monel Welded Tube Size | 6.35 mm OD To 152 mm OD |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Monel tubing wall thickness | 0.020″ –0.220″, (special wall thicknesses available) |
| Specialize in | Monel Capillary Tube & Other Odd Size Monel Heat Exchanger & Condenser Tubes |
| Monel Tube Standards | ASTM B163, ASTM B730 /ASME SB163, ASME SB730 |
| Test Certificate | Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection |
| Monel tube Form | Round, Coil, Square, Rectangular, Boiler, Hydraulic, Straight or ‘U’ bent Tubes, Hollow, LSAW Tubes Etc. |
| Monel Tube Type | Seamless, ERW, EFW, Welded, Fabricated |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Marking | All Monel Alloy tubes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application | Oil Tube, Gas Tube, Fluid Tube, Boiler and Heatexchanger |
| Monel Alloy Tube Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| Monel Alloy tube Length | Single Random, Double Random, Standard & Cut length |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.24max | 28.0-34.0 | 2.50 max | 63.00 min | – |
| Alloy K500 | 0.25 max | 1.50 max | 0.50 max | 0.010max | 27.00 – 33.00max | 0.5 – 2 | 63.00 min | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Monel K500 | 8.44g\cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20% |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Monel Coil Tubing from Tun Pipes and Tubes ensures exceptional corrosion resistance, high strength, reliable performance, and superior durability for optimal solutions in various industrial applications.
Tun Pipes and Tubes, one of the largest suppliers of Monel Coil Tubing in Naypyidaw, Myanmar, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for monel products in the region.
Yes, we offer custom sizes for Monel Coil Tubing to meet your specific requirements. Our team at Tun Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@tunpipes.com.
Monel Coil Tubing finds extensive use in industries that require flexible and corrosion-resistant tubing solutions. In the oil & gas sector, it’s utilized for hydraulic control lines, chemical injection tubing, and downhole applications where resistance to sour gas and seawater is essential. The chemical industry depends on it for transporting acids, alkalis, and other aggressive chemicals in processing plants. In marine applications, it’s used for seawater piping, heat exchangers, and condensers that are exposed to saline environments.
