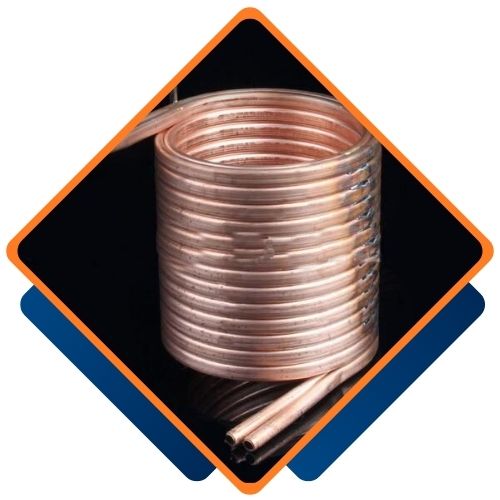

From the heart of Naypyidaw, Tun Pipes stands as a trusted name for industrial solutions, specializing in the supply of high-performance Copper Nickel coil tubing. We understand that the integrity of your systems depends on the quality of their core components, which is why our commitment lies in providing durable, reliable tubing that meets the rigorous demands of modern engineering and construction projects. Our focus is on delivering products that ensure longevity and performance, supporting the growth of Myanmar’s key industries with materials built to last.
Our Copper Nickel coil tubing is primarily composed of a 90/10 copper-nickel alloy, a blend celebrated for its exceptional resistance to saltwater corrosion. This material offers impressive mechanical strength and excellent ductility, allowing it to be formed and bent without compromising its structural integrity. It performs reliably across a wide temperature range and boasts strong fatigue resistance, making it a robust choice for systems that face constant pressure fluctuations and vibration.
Dimensions : DIN, ASTM, ASME, BS and all International Standards
Grade : Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Size Range : 1/8” to 2” and 2mm to 32mm tube diameter
Working Pressure : up to 6,000psi (based on severity of application)
Available Thread : NPT(ANSI B1.20.1), and ISO thread configurations (BSPT, BSPP)
| Element | Cu | Mn | Pb | Ni | Fe | Zn |
| Cu-Ni | 88.6 min | 1.0 max | .05 max | 9-11 max | 1.8 max | 1 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
| Property |
Metric Units |
Imperial Units |
|---|---|---|
|
Melting Point (Liquidus) |
11,500°C |
21,000°F |
|
Melting Point (Solidus) |
11,000°C |
20,100°F |
|
Density |
8.94 gm/cm³ @ 20°C |
0.323 lb/in³ @ 68°F |
|
Specific Gravity |
8.94 |
8.94 |
|
Coefficient of Thermal Expansion |
17.1 x 10 -6 / °C (20-300°C) |
9.5 x 10 -5 / °F (68-392°F) |
|
Themal Conductivity |
40 W/m. °K @ 20°C |
23 BTU/ft³/ft/hr/°F @ 68°F |
|
Thermal Capacity (Specific Heat) |
380 J/kg. °K @ 20°C |
0.09 BTU/lb/°F @ 68°F |
|
Electrical Conductivity (Annealed) |
5.26 microhm?¹.cm?¹ @ 20°C |
9.1% IACS |
|
Electrical Resistivity (Annealed) |
0.190 microhm.cm @ 20°C |
130 ohms (circ mil/ft) @ 68°F |
|
Modulus of Elasticity (tension) |
140 GPa @ 20°C |
20 x 10 6 psi @ 68°F |
|
Modulus of Rigidity (torsion) |
52 GPa @ 20°C |
7.5 x 10 6 psi @ 68°F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Copper Nickel Coil Tubing from Tun Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Choose Copper Nickel Coil Tubing from Tun Pipes and Tubes for its superior seawater corrosion resistance, biofouling protection, and excellent thermal conductivity, making it ideal for marine, industrial, and coastal applications requiring long-lasting performance and reliability.
| Wall | Sizes ( O.D.) |
|---|---|
| .010 | 1/16″, 1/8″, 3/16″ |
| .020 | 1/16″, 1/8″, 3/16″, 1/4″, 5/16″, 3/8″ |
| .012 | 1/8″ |
| .016 | 1/8″, 3/16″ |
| .028 | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 3/4″, 1″, 1 1/2″, 2″ |
| .035 | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
| .049 | 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/8″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
| .065 | 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 3/4″, 2″, 2 1/2″, 3″ |
| .083 | 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 7/8″, 2″, 2 1/2″ ,3″ |
| .095 | 1/2″, 5/8″, 1″, 1 1/4″, 1 1/2″, 2″ |
| .109 | 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″ |
| .120 | 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/4″, 2 1/2″, 3″ |
| .125 | 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 3″, 3 1/4″ |
| .134 | 1″ |
| .250 | 3″ |
| .375 | 3 1/2″ |
Yes, we offer custom sizes for Copper Nickel Coil Tubing to meet your specific requirements. Our team at Tun Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@tunpipes.com.
This Copper Nickel Coil Tubing is particularly popular in marine applications due to its exceptional resistance to seawater corrosion, making it a top choice for shipbuilding, desalination plants, and offshore platforms. It’s also used in heat exchangers, condensers, and cooling systems where thermal conductivity and durability are crucial. In the oil and gas industry, it finds its place in hydraulic lines and instrumentation tubing thanks to its toughness and reliability. Moreover, power plants and chemical processing facilities utilize it for fluid transfer, ensuring longevity, minimal maintenance, and safe operation even in harsh environments.
